COBs for Growing Cannabis/Marijuana

Premium LED COBs for building your own Grow-lights

COBs for Growing Medical Marijuana/Cannabis

EconoLux Industries Ltd. is the exclusive manufacturer of the Mc series of plant-light-on-chip grow-light COBs. These COBs are scientifically designed to have a close match to the McCree Curve and natural sunlight - they are perfect for growing Medical Cannabis.
EconoLux Industries invented and introduced the world's first McCree curve COB, with a 95+% match to the McCree curve, in April of 2017. Our unique Mc COBs are based on our extensive R&D and our proprietary self developed phosphor technology. We can make this technology available to you to make your own grow-lights with a superior spectrum and PPFD. Choose the best COB for your needs, or have us custom design one for you to suit your requirements and spectrum.





EconoLux Industries invented and introduced the world's first McCree curve COB in April of 2017
The COB, had a 90+% match to the McCree curve.  Our unique Mc COB series is based on our extensive R&D and our proprietary, self developed phosphor technology. We can make this technology available to you to make your own grow-lights with a superior spectrum and PPFD. Choose the best COB for your needs, or have us custom design one to suit your requirements - Higher wattages and custom configurations are also available.



THE Mc SERIES OF PLANT-GROWING LED COBS WITH CLOSE MATCH TO THE McCREE CURVE
Click the image below to go direct to the details



Mc80:
 This low-cost 100W COB offers full spectrum light from 415nm ~ 760nm with an average 80% match to the McCree curve (usually 79.5% to 81.2%).


Mc85:
This low-cost 100W COB offers full spectrum light from 405nm ~ 770nm with an average 85% match to the McCree curve (usually 84.5% to 85.8%).

Mc90:
This low-cost 100W COB offers full spectrum light from 395nm ~ 780nm with an average 90% match to the McCree curve (usually 91% to 93.5%).

Mc95+:
This premium, 24 band, 100W COB offers full spectrum light from 385nm to 780nm with an average 95% match to the McCree curve (usually 94.5% to 96.8%)..
Click for Mc Series COB Comparison Table



ELPL-Mc80 Low Cost, Full-spectrum (415nm ~ 760nm), 100W PCB COBs - 80% Average Match to the McCree curve
ELPL-Mc80 COB with 80% match to the McCree Curve

The Mc80 Series of LED COBs are available in 100W and custom size/configuration models. The ELPL-Mc80 COBs are full spectrum - from 415nmn to 760nm - LED grow-light-on-a-chip PCB COBs that offers an 80% match to the McCree curve, and are also a close match to natural sunlight (see Spectrum Graph below).
The McCree curve represents the latest research in plant growing lighting, with a light absorption curve close to that of sunlight - see What Light do Plants Need? The McCree curve is ideal for 'full cycle' growing of all different kinds of plants, both leafy green types (Lettuce, Chard, Spinach, Basil & other herbs, Micro-Greens. etc.) and flowering/fruiting types of plants (Tomatoes, Cucumbers, Squash, Peppers, Cannabis, etc), as well as decorative and house plants.


Spectrum

The ELPL-Mc80 Series of light-engines has an average match of 80% to the McCree curve, as well as a close match to the spectrum of sunlight.

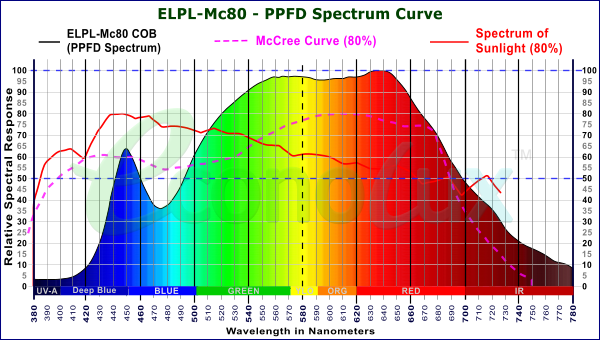

The chart (right) shows the PPFD spectrum of the Mc80 COB, with the McCree curve (as a dashed purple line - set to 80%), and with the spectrum of sunlight (solid red line set to 80%).  We use the PPFD spectrum as its is a better indicator of the photosynthesis effects that can be expected from a light source.
As you can see from the Chart, the ELPL-Mc80 series has a true full spectrum output. from 415~760nm. The Mc series of COBs are the world's only LED light source with such a close match to the McCree curve.

PPFD Spectrum of  ELPL-Mc80 COB with McCree curve and sunlight comparisons

Mc80 Comparison Graphs

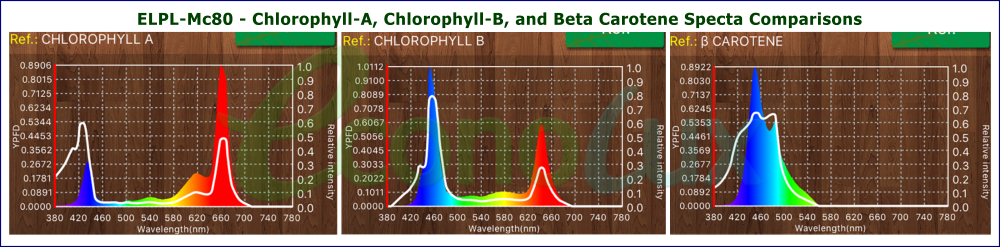

The graphs (below), from our plant/grow light spectrometer, measuring in PPFD (PAR)*, shows a comparisons of the ELPL-Mc80 100W COBTM spectrum, to various standard curves for Chlorophyll A, Chlorophyll B, and Beta Carotene - the light absorbing compounds in plants responsible for growth. The Mc80 COB grow light engine's match to these curves is Reasonably close close due to the ELPL-Mc80 COBs careful construction, and the use of our self-developed and proprietary Mc85 phosphor coating.

 ELPL Mc80 COB comparison charts

UV (380~399nm) BLUE (400~499nm) GREEN (500~599nm) RED (600~700nm) Infra Red (701~780nm)TOTALS
0.81 PPFD 130.95 PPFD 294.66 PPFD 277.68 PPFD 72.11 PPFD 776.21 PPFD
0.10% 16.87% 37.96% 35.77% 9.29% 100%



ELPL-Mc80 - SPECIFICATIONS
ELPL-Mc80 Light-engine Parameters 100 Watts
 Nominal Wattage: 100 W
 Power: (constant current driver recommended) 30~32VDC @ 3.35~3.1A
 Dimensions: 45.5mm X 40mm X 2mm
 Mounting hole Grid dimensions (4 holes of 3.4mm diameter) 34mm X 34mm
 LED Lifespan: 50,000 Hours
 Active light emitting area (works with mounts & lenses for typical 100W COBs) 23.3mm X 23.3mm
 Colour Temperature: (Kelvin) 4,290K
 Illuminance:#1  (Measured using the CIE curve - NO reflector or lens used) 29,479 Lux
 Beam Angle: 120°#1
 Total PAR/PPFD* Output: 776.21 @ 30.5cm (12")
 DLI: (Daily Light Integral - mol/m2/day) 38.4 @ 30.5cm (12")
 Efficiency #2: Using a quantum PAR meter; NO reflector or lens used 3.02 µmol/J
 Efficiency #2 (at 30.5cm - 12"): Using a quantum PAR meter; NO reflector or lens was used 7.76 PPFD/Watt
 *Note 1: Light energy for plants is measured as Photosynthetic Active Radiation (PAR), with light falling onto a surface measured as Photosynthetic Photon Flux Density (PPFD)
 #1 Note: These measurements were made at a distance of 30.5cm, (12") with no lens or reflector used. Readings will vary with distance from the COB, and the use of supplementary optics (reflector/lens). The spectrum of the COBs may vary by +/- 2% due to minor variations in the LED chips output.
 #2 Note:  We provide the electrical efficiency in industry standard µmol/J, and we also use PPFD/Watt as most professional plant/grow light manufacturers provide the average PAR/PPFD and the actual power draw (wall watts), making it simpler to compare different lights (measured at the same distance from from the light to the PAR/PPFD meter)




ELPL-Mc85 Low Cost, Full-spectrum (405nm ~ 770nm), 100W PCB COBs - 85% Average Match to the McCree curve
ELPL-Mc85 Low-cost 100W COB with 85% match to the McCree Curve The Mc85 Series of LED COBs are available in 100W and custom size/configuration models. The ELPL-Mc85 COBs are full spectrum - from 405nmn to 770nm - LED grow-light-on-a-chip PCB COBs that offers an average 85% match to the McCree curve, and are also a close match to natural sunlight (see Spectrum Graph below) - see also What Light do Plants Need?
The McCree curve is ideal for 'full cycle' growing of all different kinds of plants, both leafy green types (Lettuce, Chard, Spinach, Basil & other herbs, Micro-Greens. etc.) as well as flowering/fruiting types of plants (Tomatoes, Cucumbers, Squash, Peppers, Cannabis, etc), and also decorative and house plants (see client photo on right).

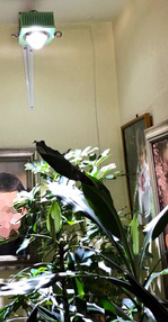

Mc85 Growing House Plants

Spectrum

The ELPL-Mc85 Series of light-engines has an average match of 85% to the McCree curve, as well as a close match to the spectrum of sunlight.

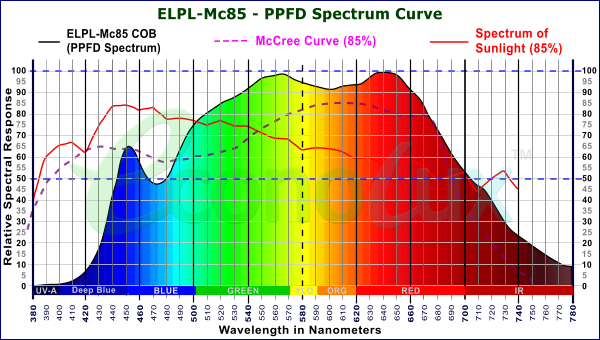

The chart (right) shows the PPFD spectrum of the Mc85 COB, with the McCree curve (as a dashed purple line - set to 85%), and with the spectrum of sunlight (solid red line set to 85%).  We use the PPFD spectrum as its is a better indicator of the photosynthesis effects that can be expected from a light source.
You can see from the Chart, the ELPL-Mc85 series has a true full spectrum output. from 405~770nm. The Mc series of COBs are the world's only LED light source with such a close match to the McCree curve (models from 80% to 95+%).

Mc85 PPFD Spectrum & McCree Curve
Mc85 Comparison Graphs
The graphs (below), from our plant/grow light spectrometer, measuring in PPFD (PAR)*, shows a comparisons of the ELPL-Mc85 100W COBTM

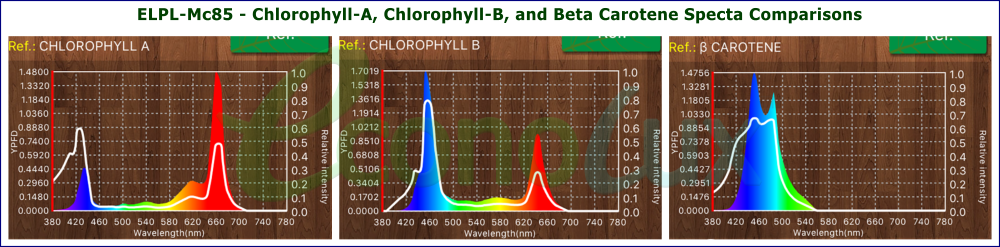

ELPL-Mc85 Chlorophyll-A & B & BetaCarotene Spectra

UV (380~399nm) BLUE (400~499nm) GREEN (500~599nm) RED (600~700nm) Infra Red (701~780nm)TOTALS
0.82 PPFD 135.00 PPFD 306.94 PPFD 292.30 PPFD 75.09 PPFD 810.15 PPFD
0.10% 16.66% 37.89% 36.08% 9.27% 100%



ELPL-Mc85 - SPECIFICATIONS
ELPL-Mc85 Light-engine Parameters 100 Watts
 Nominal Wattage: 100 W
 Power: (constant current driver recommended) 30~32VDC @ 3.35~3.1A
 Dimensions: 45.5mm X 40mm X 2mm
 Mounting hole Grid dimensions (4 holes of 3.4mm diameter) 34mm X 34mm
 LED Lifespan: 50,000 Hours
 Active light emitting area (works with mounts & lenses for typical 100W COBs) 23.3mm X 23.3mm
 Colour Temperature: (Kelvin) 4,966K
 Illuminance:#1  (Measured using the CIE curve - NO reflector or lens used) 30,295 Lux
 Beam Angle: 120°#1
 Total PAR/PPFD* Output: 810.14 @ 30.5cm (12")
 DLI: (Daily Light Integral - mol/m2/day) 40.7 @ 30.5cm (12")
 Efficiency #2: Using a quantum PAR meter; NO reflector or lens used  3.15 µmol/J
 Efficiency #2 (at 30.5cm - 12"): Using a quantum PAR meter; NO reflector or lens used 8.10 PPFD/Watt
 *Note 1: Light energy for plants is measured as Photosynthetic Active Radiation (PAR), with light falling onto a surface measured as Photosynthetic Photon Flux Density (PPFD)
 #1 Note: These measurements were made at a distance of 30.5cm, (12") with no lens or reflector used. Readings will vary with distance from the COB, and the use of supplementary optics (reflector/lens). The spectrum of the COBs may vary by +/- 2% due to minor variations in the LED chips output.
 #2 Note:  We provide the electrical efficiency in industry standard µmol/J, .and we also use PPFD/Watt as most professional plant/grow light manufacturers provide the average PAR/PPFD and the actual power draw (wall watts), making it simpler to compare different lights (measured at the same distance from from the light to the PAR/PPFD meter).




ELPL-Mc90 Medium-Low Cost, Full-spectrum (395nm ~ 780nm), 100W PCB COBs - 90% Average Match to the McCree curve
The Mc90 Series of LED COBs are available in 100W and custom size/configuration models and they are especially useful for growing Cannabis due the additional Blue and UV light they produce. The ELPL-Mc90 COBs are full spectrum - from 395nmn to 780nm - LED grow-light-on-a-chip PCB COBs, that offer an average 90% match to the McCree curve, and are also a close match to natural sunlight (see Spectrum Graph below) - also see What Light do Plants Need?
The McCree curve is ideal for 'full cycle' growing of all different kinds of plants.  The Mc90 is ideal for leafy green types (Lettuce, Chard, Spinach, Basil & other herbs, Micro-Greens. etc.) due to it's enhanced blue, and also ideal for flowering/fruiting types of plants (Tomatoes, Cucumbers, Squash, Peppers, Cannabis, etc), as well as decorative and house plants.

Spectrum

The ELPL-Mc90 Series of light-engines has an average match of 90% to the McCree curve, as well as a close match to the spectrum of sunlight.

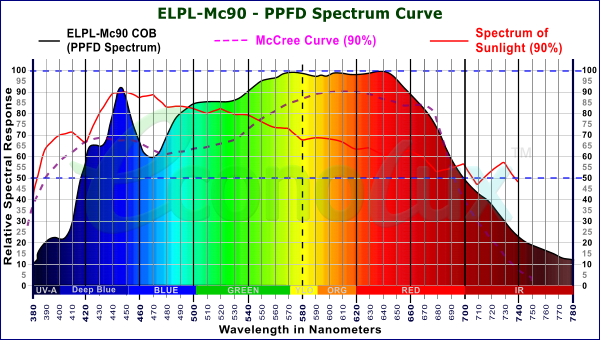

The chart (right) shows the PPFD spectrum of the Mc90 COB, with the McCree curve (as a dashed purple line - set to 90%), and with the spectrum of sunlight (solid red line set to 90%) - note the enhanced UV and blue light in this model.  We use the PPFD spectrum as its is a better indicator of the photosynthesis effects expected from a light source.
You can see from the Chart, the ELPL-Mc90 series has a true full spectrum output. from 395~780nm.


Mc90 Comparison Graphs

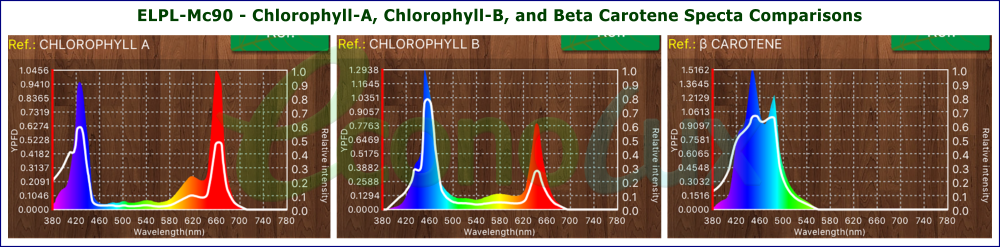

The graphs (below), from our plant/grow light spectrometer, measuring in PPFD (PAR)*, shows a comparisons of the ELPL-Mc90 100W COBTM spectrum, to various standard curves for Chlorophyll A, Chlorophyll B, and Beta Carotene - the light absorbing compounds in plants responsible for growth. The Mc90 COB grow-light engine's match to these curves is very close due to the ELPL-Mc90 COBs careful construction, and the use of our self-developed and proprietary phosphor coating.


UV (380~399nm) BLUE (400~499nm) GREEN (500~599nm) RED (600~700nm) Infra Red (701~780nm)TOTALS
8.11 PPFD 164.63 PPFD 235.14 PPFD 226.67 PPFD 50.53 PPFD 685.08 PPFD
1.18% 24.03% 34.32% 33.09% 7.38% 100%



ELPL-Mc90 - SPECIFICATIONS
ELPL-Mc90 Light-engine Parameters 100 Watts
 Nominal Wattage: 100 W
 Power: (constant current driver recommended) 30~32VDC @ 3.35~3.1A
 Dimensions: 45.5mm X 40mm X 2mm
 Mounting hole Grid dimensions (4 holes of 3.4mm diameter) 34mm X 34mm
 LED Lifespan: 50,000 Hours
 Active light emitting area (works with mounts & lenses for typical 100W COBs) 23.3mm X 23.3mm
 Colour Temperature: (Kelvin) 4,966K
 Illuminance:#1  (Measured using the CIE curve - NO reflector or lens used) 36,548 Lux
 Beam Angle: 120°#1
 Total PAR/PPFD* Output: 685.08 @ 30.5cm (12")
 DLI: (Daily Light Integral - mol/m2/day) 52.9 @ 30.5cm (12")
 Efficiency #2: Using a quantum PAR meter; NO reflector or lens used  2.74 µmol/J
 Efficiency #2 (at 30.5cm - 12"): Using a quantum PAR meter; NO reflector or lens used 6.85 PPFD/Watt
 *Note 1: Light energy for plants is measured as Photosynthetic Active Radiation (PAR), with light falling onto a surface measured as Photosynthetic Photon Flux Density (PPFD)
 #1 Note: These measurements were made at a distance of 30.5cm, (12") with no lens or reflector used. Readings will vary with distance from the COB, and the use of supplementary optics (reflector/lens). The spectrum of the COBs may vary by +/- 2% due to minor variations in the LED chips output.
 #2 Note:  We provide the electrical efficiency in industry standard µmol/J, and we also use PPFD/Watt as most professional plant/grow light manufacturers provide the average PAR/PPFD and the actual power draw (wall watts), making it simpler to compare different lights (measured at the same distance from from the light to the PAR/PPFD meter).




ELPL-Mc95+ Premium Full-spectrum (385nm ~ 780nm), 100W & 200W Standard COBs - 95% Average Match to the McCree curve
ELPL-Mc95+ 100W COB with 95+% Match to the MCree Curve The Mc95+ Series of LED COBs are a premium 24 band (24 different wavelengths of LEDs) model, available in 100W and 200W Versions. The ELPL-Mc95+ COBs are the only full spectrum (385nm to 780nm) LED grow-light-on-a-COB-chip engines in the world that offer a 95 plus percent average (usually 94.5% to 96.8%) match to the McCree curve, and are a close match to natural sunlight. This is the only COB in  the world with such close match to the McCree curve and natural sunlight (see spectrum graph below).
The McCree curve is the best scientific research in plant growing light needs, with a light absorption curve close to that of sunlight - see What Light do Plants Need? The McCree curve is ideal for 'full cycle' growing of all kinds of plants, both leafy green types (Lettuce, Chard, Spinach, Basil & other herbs, Micro-Greens. etc.) due to the extensive UV and blue light and full spectrum; and flowering/fruiting types of plants (Tomatoes, Cucumbers, Squash, Peppers, Cannabis, etc) due to the full spectrum and the abundance of red light.

Spectrum

The ELPL-Mc95+ Series of light-engines has an average match of 95% to the McCree curve, as well as a close match to the spectrum of sunlight.

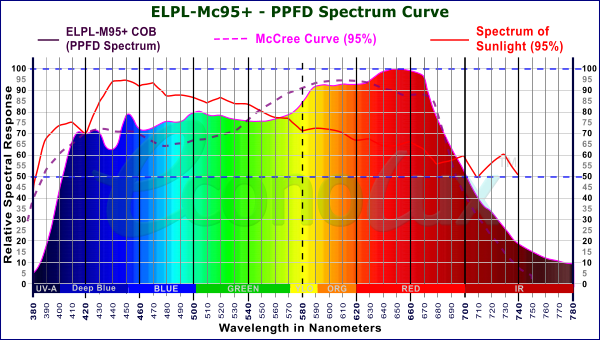

The chart (right) shows the PPFD spectrum of the Mc95+ COB, with the McCree curve (as a dashed purple line - set to 95%), and with the spectrum of sunlight (solid red line also set to 95%) - note the enhanced UV and blue light in the Mc95+ model.  We use the PPFD spectrum as its is a better indicator of the photosynthesis effects that can be expected from a light source.
You can see from the Chart, the ELPL-Mc95+ Model has a true full spectrum output. from 385~780nm.


Mc95+ Comparison Graphs

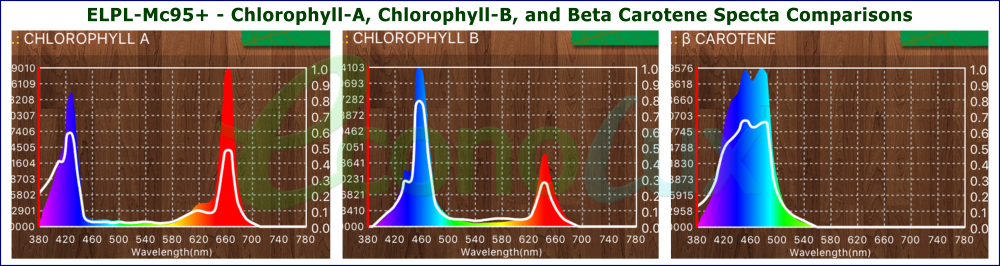

The graphs (below), from our plant/grow light spectrometer, measuring in PPFD (PAR)*, shows a comparisons of the ELPL-Mc95+ 100W COBTM spectrum, to various standard curves for Chlorophyll A, Chlorophyll B, and Beta Carotene - the light absorbing compounds in plants responsible for growth. The Mc95+ COB grow-light engine's match to these curves is almost perfect due to the ELPL-Mc95+ COBs careful construction with 24 bands of LEDs, and the use of our self-developed and proprietary phosphor coating.


UV (380~399nm) BLUE (400~499nm) GREEN (500~599nm) RED (600~700nm) Infra Red (701~780nm)TOTALS
16.45 PPFD 261.55 PPFD 293.14 PPFD 326.31 PPFD 69.33 PPFD 966.78 PPFD
1.70% 27.05% 30.32% 33.75% 7.17% 100%

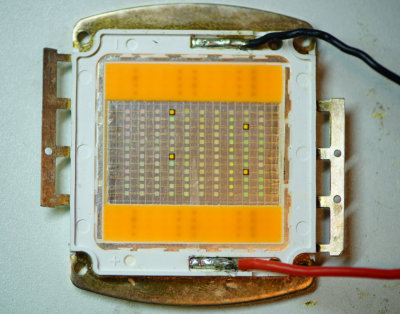

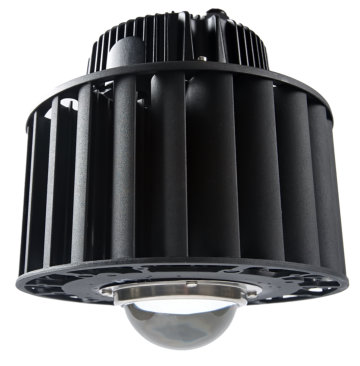

PRO-LEDTM 100W Grow-light with Mc95+ COB & 90° lens 200W Mc95+ COB Grow-light on a chip



Mc95+ Premium 24 Band COB - SPECIFICATIONS
ELPL-Mc95+ Light-engine Parameters 100 Watts 200 Watts
 Nominal Wattage: 100 W 200W
 Power: (constant current driver recommended) 30VDC @ 3.35A 30VDC @ 6.6A
 Dimensions: 56mm X 52mm X 4.5mm 82mm X 82mm X 6mm
 LED Lifespan: 50,000 Hours
 Colour Temperature: (Kelvin) 5,679K
 Illuminance:#1  (Measured using the CIE curve) 46,593 Lux 791,052 Lux
 Beam Angle: 120°#1
 Total PAR/PPFD* Output: 966.78 @ 30.5cm (12")  1,885.22 @ 30.5cm (12")
 DLI: (Daily Light Integral - mol/m2/day) 62.02 @ 30.5cm (12") 120.3 @ 30.5cm (12")
 Efficiency#2 (@ 30.5cm - 12"): Using a quantum PAR meter; with NO reflector or lens used 2.97 µmol/J
 Efficiency#2(@ 30.5cm - 12"): Using a quantum PAR meter; with NO reflector or lens used 9.66 PPFD/Watt 9.43 PPFD/Watt
 *Note 1: Light energy for plants is measured as Photosynthetic Active Radiation (PAR), with light falling onto a surface measured as Photosynthetic Photon Flux Density (PPFD)
 #1 Note: These measurements were made at a distance of 30.5cm, (12") with no lens or reflector used. Readings will vary with distance from the COB, and the use of supplementary optics (reflector/lens). The spectrum of the COBs may vary by +/- 2% due to minor variations in the LED chips output.
 #2 Note:  We provide the electrical efficiency in industry standard µmol/J, and we also use PPFD/Watt as most professional plant/grow light manufacturers provide the average PAR/PPFD and the actual power draw (wall watts), making it simpler to compare different lights (measured at the same distance from from the light to the PAR/PPFD meter).


Mc Series 100 Watt COB Comparison Table
MODEL TYPE AVG. MATCH MATCH RANGE OUTPUT
PPFD
OUTPUT
DLI
EFFICIENCY 1 EFFICIENCY 2 COST DETAILS
(Click the link)
(to The McCree Curve)
Mc80 PCB COB 80% 79.5%~81.2% 776.21 38.4 7.76 PPFD/W 3.02 µmol/J Low Mc80 COB
Mc85 PCB COB 85% 84.5%~85.8% 810.15 40.7 8.10 PPFD/W 3.15 µmol/J Low Mc85 COB
Mc90 PCB COB 90% 91%~93.5% 685.08 52.9 6.85 PPFD/W 2.74 µmol/J Med-low MC90 COB
Mc95+ Standard COB 95% 94.5%~96.8% 966.78 63.02 9.66 PPFD/W 2.97 µmol/J Premium MC95+ COB


CUSTOM COBs
EconoLux can design custom COBs to suit your needs and budget. In the past we have designed COBs with a 95% match to the PAR curve.  We have designed special tomato growing COBs with a proprietary spectrum (as specified by the client) that increased crop yields by 18% to 22%.  We have designed custom UVA COBS with wavelength output between 360nm and 395nm. We can designs any COB, either based on a conventional COB holders, or a PCB style COB.  Please contact us to discuss your needs.


ELPL-Mc Series LED COB Power Connections

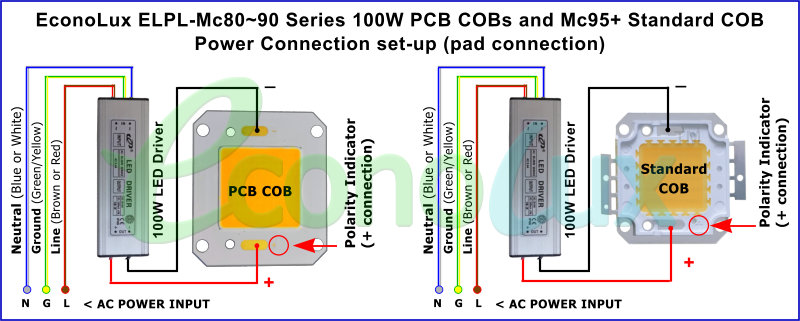

The diagram below shows the power connections for the ELPL Mc series COBs. Care should be taken when soldering wires to the COB not to overheat the solder pads, and to use standard electrostatic precautions (EG: grounded wrist straps).

ELPL Mc Series COBs Power hook-up disgram
