VertiFarmTM Grow-lights

Ideal for shelf growing due to their low profile

VertiFarm-40TM and VertiFarm-60TM Low-Profile LED Grow-lights

The VertiFarmTM Series is designed for germination, sprouting and shelf-growing applications.

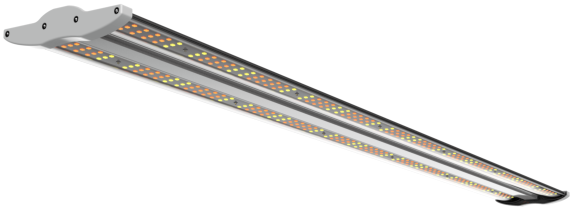

ELPL VertiFarm Series LED Grow-light

ELPL-VertiFarmTM Series LED Grow Lights by EconoLux are designed specifically for growing applications where vertical space is at a premium, due to their low-profile - only 3.8cm (1.5") high. They are ideal for all types of growing application including germination, seedlings, hydroponics, aquaponics and soil growing, with a compact format, top-light, medium to low power LED grow lights, with high PPFD are needed. They are suitable for all types of plants including flowering plants.

INCREASED YIELDS

The VertiFarmTMseries of LED Grow lights have been tested in a Hong Kong aquaponics greenhouse, where they grew lettuce to full size in around 30~35 days, with improved coloration, taste and texture - compared to lettuce grown under competing blue/red/pink/white, and Fluorescent tube lights. This is due to the improved spectrum of the VertiFarmTM lights that has a 70% match to the McCree curve (ELFS spectrum), and a high efficiency of 2.3 µmoles/J.
The VertiFarm-40TMand VertiFarm-60 TM LED lights are also in use with NFT (Nutrient Film Technology) vertical grow tubes for the cultivation of herbs and Chinese medicinal plants (photo on right).

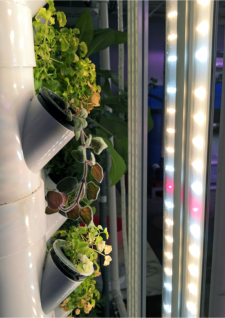

VertiFarm-60 gtowing plants in Vertical NFT set-up

KEY FEATURES


► VertiFarmTM series is only 2.85cm (1.12") high - ideal for locations where vertical space is limited (E.G.: Shelf growing)
► 40 Watt or 60 Watt models

► PAR/PPFD = VertiFarm-40TM 92 µmoles/s - VertiFarm-60TM 150 µmoles/s - 2.3 µmoles/J efficiency
► VertiFarm-40 can replace 60 watts of fluorescent or conventional lights
► VertiFarm-60 can replace 90W of fluorescent or conventional lights
► Power savings average 33% compared to fluorescent lamps - maximize your energy savings
► Spectrum: ELFS - Modified "white light full spectrum" and ELMR - Closer match to the McCree curve
(coming soon)
► De-rated LED array for extended lifespan of 50,000 to 55,000 hours
► 3 year warrantee
► High efficiency SMT LEDs with advanced proprietary phosphors
► Beam angle of 120 degrees gives smooth coverage over a larger area
► Passive convection cooling - NO noisy fans that require maintenance
► IP65 rated (waterproof) light fixture - Ideal for use in damp/humid greenhouses
► Corrosion resistant aircraft aluminum construction
► Universal power input of 100~270 VAC, 50/60Hz - can operate almost anywhere in the world
► RoHS, CE & ETL approved, IP65 (waterproof) drivers - Fixture is ETL listed
► Your brand-name and model number can be printed onto the lights with MOQ 48 pieces

ARANHA Series Certifications

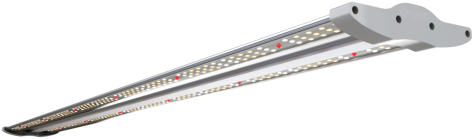

VertiFarm-60 LED Grow Light

SPECTRUM CHOICES

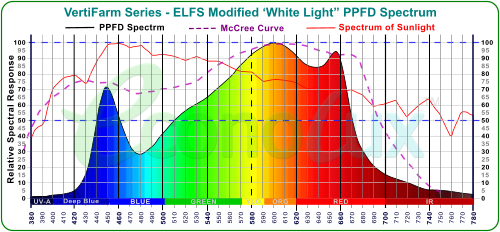

VertiFarm Seres ELFS Modified Whte light PPFD spectrum


The VertiFarm-40TM and VertiFarm-60TM LED grow lights are available with a standard ELFS spectrum which is based on the popular modified 'White Light', good enough full spectrum, with output throughout the PAR range from 400nm to 750nm. This spectrum has a good balance between the ideal spectrum (the McCree curve) and the cost of the lights, with a 70% match to the McCree curve. This spectrum is suitable for use with all kinds of seedlings and plants, including flowering plants.

VertiFarm ELMR PPFD Spectrum The VertiFarm-40TM and VertiFarm-60TM Grow-lights will also be available with a spectrum that has a closer match to the McCree curve (80% to 85%). The McCree curve is the spectral curve that scientists have determined is the best for growing a variety of crop plants. The extra UV and blue light provided in the ELMR spectrum is ideal for growing micro-greens or leafy green plants such as lettuce, kale, arugula, etc., and for cloning and germination of all types of plants (coming soon).

NOTE: The PPFD spectra are shown above as these give a more accurate representation of how plants "see" light, rather then the standard (human eye) spectrum shown by most vendors.



LED ARRAY

The VertiFarm-40TM and VertiFarm-60TM LED grow lights utilize the most advanced high-efficiency SMT LEDs to maximise PAR/PPFD output. There are more LEDs than needed, which gives us the opportunity to de-rate the array, which extends the lifespan of the LEDs - we offer a 3 year warrantee.
The VertiFarm series of LED grow-lights are built with the most advanced, proprietary, LED technology to insure maximum PAR/PPFD output, wide beam-spread of 120 degrees, even lighting distribution, long service life, and maximum energy savings.


PASSIVE COOLING AND RUGGED CONSTRUCTION

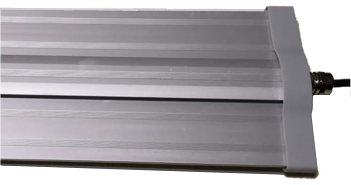

VertiFarm Series Grow Light back Heat-sink

The housings of the VertiFarmTM series of LED lights have a large heat-sink area on the back, for effective passive cooling - this means no noisy, high maintenance, fans. With an IP-65 water and dust proof rating, they are ideal for use in the high humidity conditions found in greenhouses.
The VertiFarm-40TM and VertiFarm-60TM are equipped with built-in RoHS/CE/ETL approved, IP65, LED drivers which feature universal power input of 100VAC to 270VAC, 50/60 Hz, thus they can operate almost anywhere in the world.


MAXIMUIZE YOUR ENERGY AND MAINTENANCE SAVINGS

The VertiFarm-40TM and VertiFarm-60TM series of LED grow lights can save energy costs compared to conventional grow lights, while increasing crop yields. The VertiFarm-40TM can replace 60 watts of fluorescent or conventional lights - The VertiFarm-60TM can replace 90W of fluorescent or conventional lights - a 33% (or more) power saving! These power reduction are available while you save labour, time, and money on maintenance as the annual bulb changes required by typical conventional lights are not needed anymore, since the LEDs will last 50,000 to 55,000 hours.


SPECIFICATIONS

The VertiFarmTM series LED grow lights are available in two models depending on the desired output power (PAR/PPFD) - 40 Watts or 60 Watts.

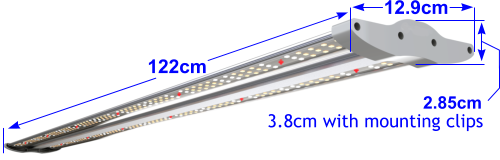

DIMENSIONS:

VertiFarm-40TM - 122cm [49.0in ] L * 12.9cm [5.0in] W * 2.85cm [1.12in] H (3.8cm [1.5in] high including mounting clips).
     VertiFarm-60TM - 122cm [49.0in ] L * 12.9cm [5.0in] W * 2.85cm [1.12in] H (3.8cm [1.5in] high including mounting clips).

WEIGHT:
    1KG (2.2 Lbs)

NOTE:  MOQ is 4 units as they are packed in cartons of 4 pieces.

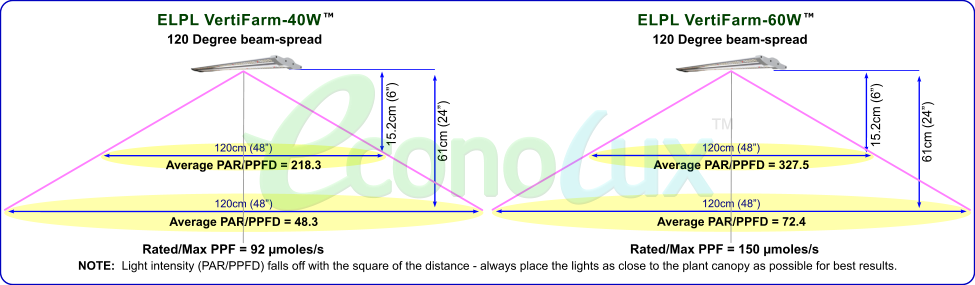

BEAM-SPREAD and PAR/PPFD:

*PPFD: Lighting for plants is different from lighting for humans. Light energy for humans is measured in lumens, with light falling onto a surface measured as illuminance with units of lux (lumens per square meter) or foot-candles (lumens per square foot). Light energy for plants on the other hand, is measured as photosynthetic Active Radiation (PAR), with light falling onto a surface measured as photosynthetic photon flux density (PPFD). Lumens are for humans - PPFD/PAR are for plants!

Model & McCree Curve Match Wattage Output PPF Efficiency Beam-Spread
VertiFarm-40TM-ELFS - 70% 40 Watts 92 µmoles/s 2.3 µmoles/J 120°
VertiFarm-60TM-ELFS - 70% 60 Watts 150 µmoles/s

Based on prototypes - specifications subject to change due to continuous product improvement


CUSTOMIZATION
The spectrum of the VertiFarmTM Series of LED Grow-lights can be modified/customized to suit your needs (subject to MOQ).
The VertiFarm
series can also be customized with your logo, brand-name, and model name/number (subject to MOQ).

DOWNLOAD - ELPL-VertiFarmTM Series LED Grow-Light Info Sheet - Jan 2019.pdf
